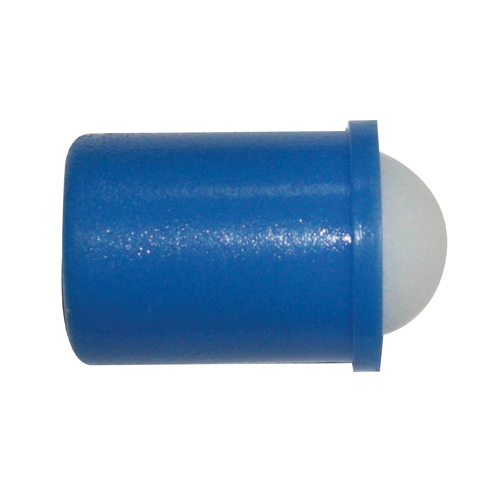

9031 Plastic Spring Plungers

Home / Products / 9.Clamping Accessories / Plastic Spring Plungers
9031
Plastic Spring Plungers
Inquiry BACK TO LIST Print
Product Specification
Name Material Surfaced process
Basic structure Delrin Blue (BL)
Ball POM White



       (mm)
Order No.

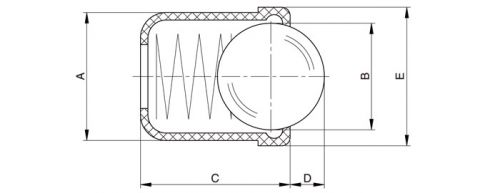

(KT)		 A B C D E
9031 - 4 4 3 5 0.8 4.6
         - 5 5 4 6 1 5.6
         - 6 6 5 7 1.6 6.5
         - 8 8 6.5 9 1.9 8.5
         - 10 10 8.5 13.5 2.6 11
         - 12 12 10 16 3.3 13
