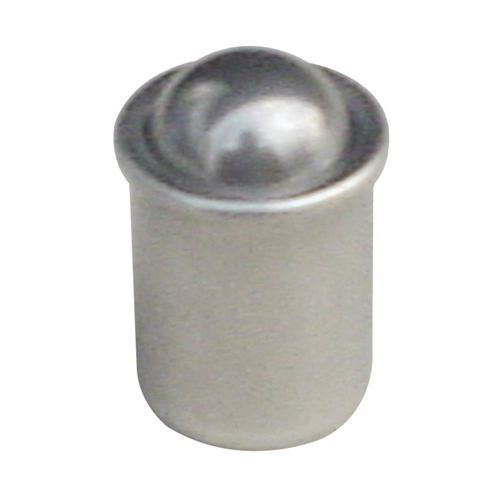

9030 ST.Steel Spring Plungers

Home / Products / 9.Clamping Accessories / ST. Steel Spring Plungers
9030
ST. Steel Spring Plungers
Inquiry BACK TO LIST Print
Product Specification
Name Material
Basic structure Stainless steel (SST)



       (mm)
Order No.
(SST)		 A B C D E
9030 - 3 3.2 2.5 5 0.8  --
         - 4 4 3 5 0.8 4.6
         - 5 5 4 6 1 5.6
         - 6 6 5 7 1.6 6.5
         - 8 8 6.5 9 1.9 8.5
         - 10 10 8.5 13.5 3.1 11
         - 12 12 10 16 3.8 13
