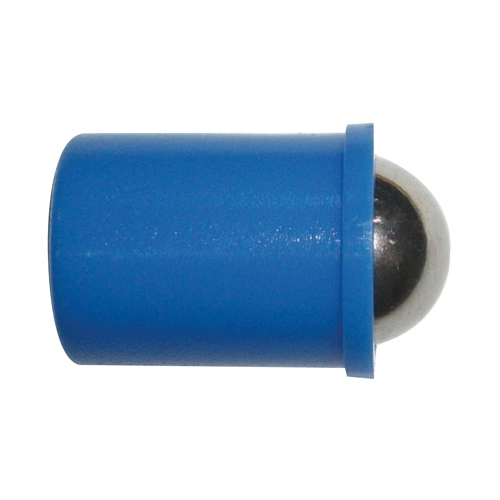

9032 Plastic Spring Plungers

Home / Products / 9.Clamping Accessories / Plastic Spring Plungers
9032
Plastic Spring Plungers
Inquiry BACK TO LIST Print
Product Specification
Name Material Surfaced process
Basic structure Delrin Blue (BL)
Ball Stainless steel (SST) 　



       (mm)
Order No.

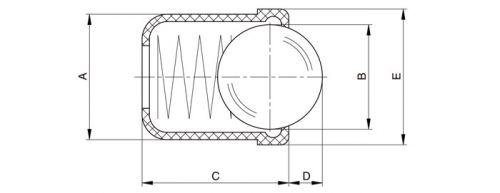

(KT)		 A B C D E
9032 - 4 4 3 5 0.8 4.6
         - 5 5 4 6 1 5.6
         - 6 6 5 7 1.6 6.5
         - 8 8 6.5 9 1.9 8.5
         - 10 10 8.5 13.5 2.6 11
         - 12 12 10 16 3.3 13
