9180 Steel Multi-Function Detailed Seats

Home / Products / 9.Clamping Accessories / Steel Multi-Function Detailed Seats
9180
Steel Multi-Function Detailed Seats
Inquiry BACK TO LIST Print
Product Specification
Name Material Surfaced process
Seat Steel (ST) Painted yellow (YE)
Painted silver (SR)
Screw Steel (ST) Black (BK)
Zinced (ZI)-9180-100-M12-90
Skidproof Rubber Black (BK)

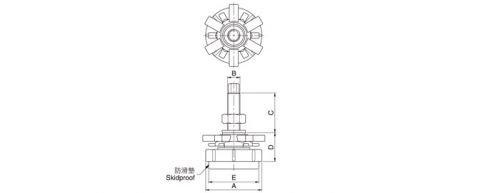

       (mm)
Order No.
(ST)		 A B C D E Loading (kg) Limit loading(kg)
9180-100-M12-90 100 M12 60 77 95 600 7900
        -150-M16-110 150 M16 78 100 135 1000 7900
        -200-M20-120 200 M20 87 105 184 2500 7900
        -250-M24-180 250 M24 146 110 235 4000 7900
