6010 Steel Hand Knobs

Home / Products / 6.Hand Knobs / Steel Hand Knobs
6010
Steel Hand Knobs
Inquiry BACK TO LIST Print
Product Specification
Name Material Surfaced process
Basic structure Cast iron (GG) Matt silver (EL)



       (mm)
Order No.

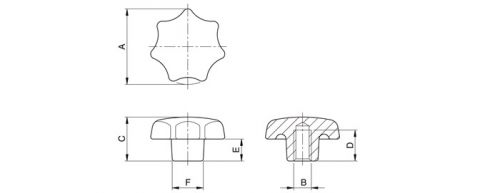

(GG)		 A B C D E F
6010-32-M6 32 M6 21 12 10 12
        -40-M8 40 M8 26 15 13 14
        -50-M8 50 M8 34 18 17 18
          -50-M10 50 M10 34 18 17 18
          -63-M10 63 M10 42 22 21 20
          -63-M12 63 M12 42 22 21 20
          -80-M12 80 M12 52 28 25 25
          -80-M16 80 M16 52 28 25 25
