6205 Bakelite Lobe Konbs

Home / Products / 6.Hand Knobs / Bakelite Lobe Konbs
6205
Bakelite Lobe Konbs
Inquiry BACK TO LIST Print
Product Specification
Name Material Surfaced process
Knob Bakelite KU) Black (BK)
Spindle Steel (ST) Brass color



       (mm)
Order No.

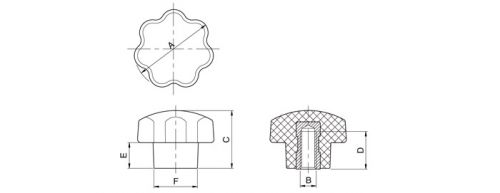

(KU)		 A B C D E F
6205-25-M6 25 M6 22 10 12 15
       -32-M8 32 M8 24 12 11 19
         -40-M10 40 M10 30 16 14 22
         -50-M12 50 M12 32 16 16 26
         -63-M16 63 M16 41 17 20 33
