3080 Aluminum Control Knobs

Home / Products / 3.Handwheels / Aluminum Control Knobs
3080

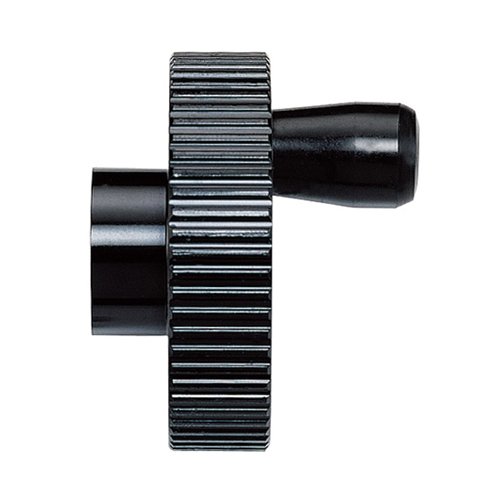

Aluminum Control Knobs
Inquiry BACK TO LIST Print
Product Specification
Name Material Surfaced process
Knob Aluminum (AL) Anodized black (AB)
Handle Plastic (KT) Black (BK)
Cap Aluminum (AL) Matt Silver (EL)



       (mm)
Order No.

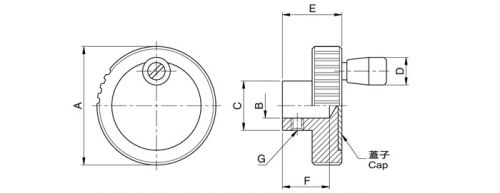

(AL)		 A B C D E F G
3080-42-B8 42 B8 20 14 23 18 M5
        -52-B10 52 B10 22 14 23 18 M5
        -62-B10 62 B10 25 14 23 18 M5
        -72-B10 72 B10 28 14 23 18 M5
