8031 Knurled Nuts

Home / Products / 8.Knurled Nuts / Knurled Nuts
8031
Knurled Nuts
Inquiry BACK TO LIST Print
Product Specification
Name Material Surfaced process
Knob Plastic (KT) Black (BK)
Spindle Copper (CU) 　



       (mm)
Order No.

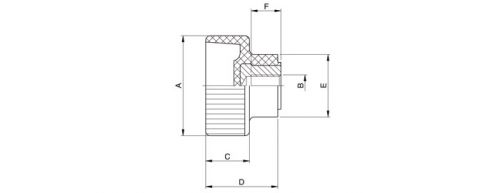

(KT)		 A B C D E F
8031-20-M4 20 M4 8 13.5 12 7
         20-M5 20 M5 8 13.5 12 8
         25-M6 25 M6 9 19.5 15 11
         30-M8 30 M8 11 21.5 18 13
          35-M10 35 M10 13 28 21 18
