8090 Steel Knurled Thumb Screws

Home / Products / 8.Knurled Nuts / Steel Knurled Thumb Screws
8090

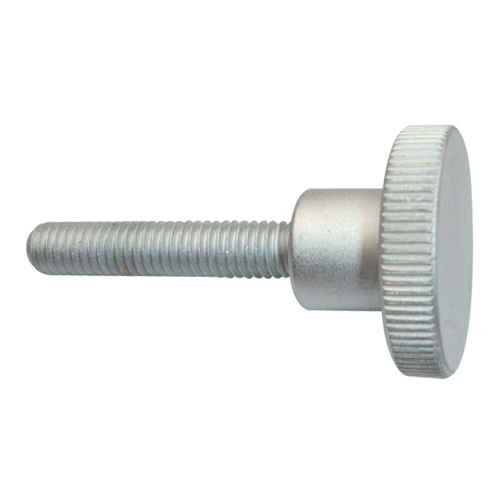

Steel Knurled Thumb Screws
Inquiry BACK TO LIST Print
Product Specification
Name Material Surfaced process
Basic structure Steel(ST) Matt silver (EL)



       (mm)
Order No.

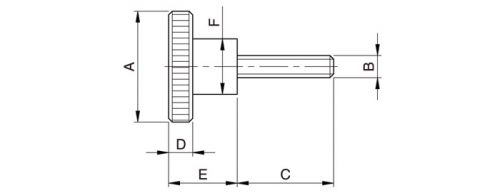

(ST)		 A B C D E F
8090-12-M3-10 12 M3 10 2.5 7.5 6
        -12-M3-15 12 M3 15 2.5 7.5 6
        -16-M4-10 16 M4 10 3.5 9.5 8
        -16-M4-15 16 M4 15 3.5 9.5 8
        -16-M4-20 16 M4 20 3.5 9.5 8
        -16-M4-25 16 M4 25 3.5 9.5 8
        -20-M5-10 20 M5 10 4 11.5 10
        -20-M5-15 20 M5 15 4 11.5 10
        -20-M5-20 20 M5 20 4 11.5 10
        -20-M5-25 20 M5 25 4 11.5 10
        -20-M5-30 20 M5 30 4 11.5 10
        -24-M6-15 24 M6 15 5 15 12
        -24-M6-20 24 M6 20 5 15 12
        -24-M6-25 24 M6 25 5 15 12
        -24-M6-30 24 M6 30 5 15 12
        -24-M6-35 24 M6 35 5 15 12
        -30-M8-20 30 M8 20 6 18 16
        -30-M8-30 30 M8 30 6 18 16
        -30-M8-40 30 M8 40 6 18 16
          -36-M10-20 36 M10 20 8 20 20
          -36-M10-30 36 M10 30 8 20 20
          -36-M10-40 36 M10 40 8 20 20
