1145 Bakelite Ellipse Shaped Knobs
Home
/
Products
/
1.General Handles
/ Bakelite Ellipse Shaped Knob
1145

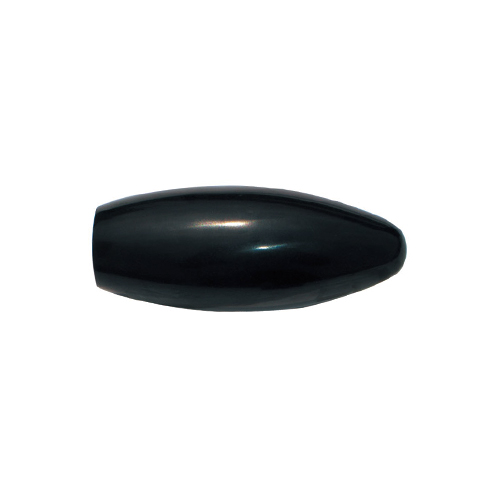

Bakelite Ellipse Shaped Knob
Inquiry
BACK TO LIST
Print
Download 3D File
1145-14-M5
1145-23-M6
1145-26-M8
1145-30-M10
1145-35-M12
Product Specification
Name
Material
Surfaced process
Knob
Bakelite (KU)
Black (BK)
Internal thread
Bakelite (KU)
Black (BK)

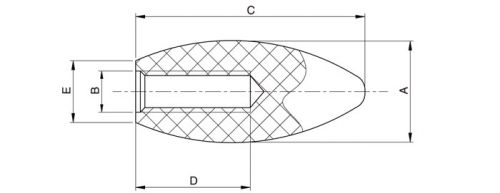

(mm)
Order No.
(KU)
A
B
C
D
E
1145-14-M5
14
M5
34
25
7
-23-M6
23
M6
60
17
14
-26-M8
26
M8
70
25
16
-30-M10
30
M10
65
26
16
-35-M12
35
M12
85
28
22
