9036 Copper Double Ended Spring Plungers

Home / Products / 9.Clamping Accessories / Copper Double Ended Spring Plungers
9036
Copper Double Ended Spring Plungers
Inquiry BACK TO LIST Print
Product Specification
Name Material
Basic structure Copper (CU)
Ball Stainless steel (SST)



       (mm)
Order No.

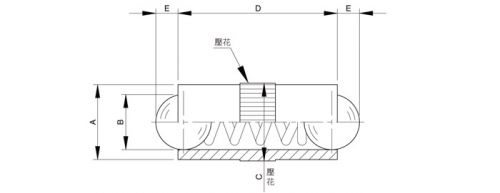

(CU)		 A B C D E
9036 - 3 3 2.5 3.1 7.3 0.8
         - 4 4 3 4.1 9 0.9
         - 5 5 4 5.1 10.8 1.2
         - 7 7 6 7.2 14 2
         - 8 8 6.5 8.3 18 2.1
