4110 Steel Flat Adjustable Tension Levers

Home / Products / 4.Adjustable Handles / Steel Flat Adjustable Tension Levers
4110

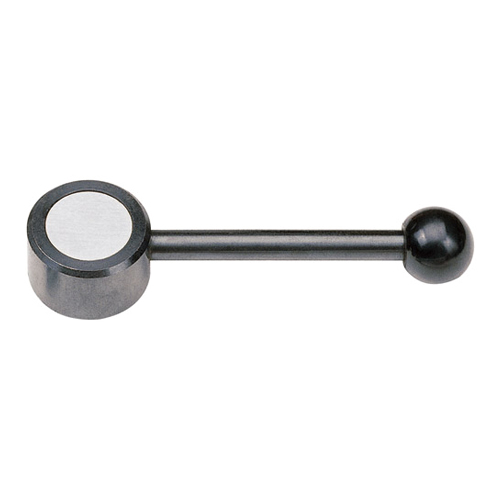

Steel Flat Adjustable Tension Levers
Inquiry BACK TO LIST Print
Product Specification
Name Material Surfaced process
Handle  Steel (ST) Matt black (EBK)
Knob Bakelite (KU) Black (BK)
Cap Aluminum (AL) Matt silver (EL)
Spindle  Steel (ST) Black (BK)



       (mm)
Order No.

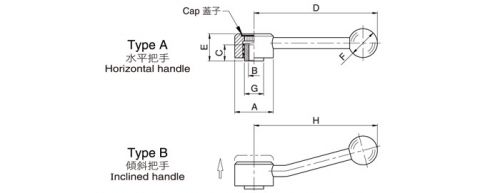

Type A		 Order No.
Type B		 A B C D E F G H
4110-32-M6 4111-32-M6 32 M6 10 100 20.5 22 13.4 99
        -32-M8         -32-M8 32 M8 10 100 20.5 22 13.4 99
        -36-M8         -36-M8 36 M8 14 120 24.5 27 16 119
          -36-M10           -36-M10 36 M10 14 120 24.5 27 16 119
          -40-M10           -40-M10 40 M10 17 130 26.5 34 19 129
          -40-M12           -40-M12 40 M12 17 130 26.5 34 19 129
          -45-M12           -45-M12 45 M12 22 145 35.5 34 23 144
          -45-M16           -45-M16 45 M16 22 145 35.5 34 23 144
