4050 ST.Steel Zinc alloy Adjustable Hand Levers

Home / Products / 4.Adjustable Handles / ST. Steel Zinc alloy Adjustable Hand Levers
4050

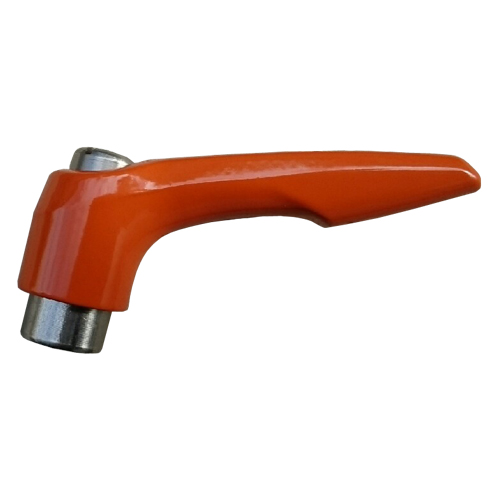

ST. Steel Zinc alloy Adjustable Hand Levers
Inquiry BACK TO LIST Print
Product Specification
Name Material Surfaced process
Handle  Zinc die casting (ZD) Painted black (BK)
Painted orange (OR)
Painted silver (SR)
Spindle  Stainless Steel (SST) 　



       (mm)
Order No.
(ZD))		 A B C D E F
4050-A-B-Surfaced color

*A(Handle length)

   B(Internal thread)		 40 M4 8 10 24.5 34
40 M5 8 10 24.5 34
40 M6 8 10 24.5 34
45 M4 8 10 24.5 35
45 M5 8 10 24.5 35
45 M6 8 10 24.5 35
63 M6 10 13.5 31 45
63 M8 10 13.5 31 45
78 M8 14 16 36 55
78 M10 14 16 36 55
92 M10 17 19 43 65
92 M12 17 19 43 65
108 M12 22 23 50.5 76
108 M14 22 23 50.5 76
108 M16 22 23 50.5 76
