4020 Plastic Adjustable Hand Levers

Home / Products / 4.Adjustable Handles / Plastic Adjustable Hand Levers
4020
Plastic Adjustable Hand Levers
Inquiry BACK TO LIST Print
Product Specification
Name Material Surfaced process
Handle  (KT) Orange OR)
Black (BK)
Orange knob and black handle (OB)
Black knob and orange handle (BO)
Spindle  Steel (ST) Zinced (ZI)



       (mm)

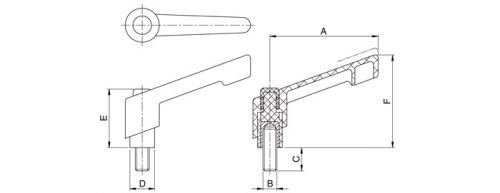

Order No.
(KT)		 A B C D E F
4020-A-B-C-Surfaced color

*A(Handle length)

   B(Internal thread)

  C(Thread length)		 42 M5 10 15 20 25 30 - - 12 27 34
42 M6 10 15 20 25 30 - - 12 27 34
65 M6 10 15 20 25 30 - - 15 36 48
65 M8 10 15 20 25 30 - - 15 36 48
80 M10 - - 20 25 30 40 50 20 46 63
80 M12 - - 20 25 30 40 50 20 46 63
