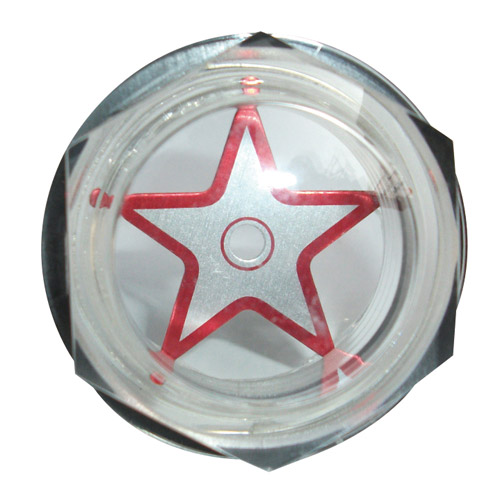

C030 Oil Level Indicator

Home / Products / C.Oil Indicator Accessories / Oil Level Indicator
C030
Oil Level Indicator
Product Specification
Name Material Surfaced process
Basic Structure Polyamide
Contrast screen Aluminum (AL) Matt Silver (EL)
Sealing ring NBR synthetic rubber Black (BK)
Max working temperature 105°C



       (mm)
Order No.
Polyamide
A B C D E F
C030-35-M30 35 M30 x P1.5 20 9 30 23.5
        -48-M40 48 M40 x P1.5 25 11 41 29.5
