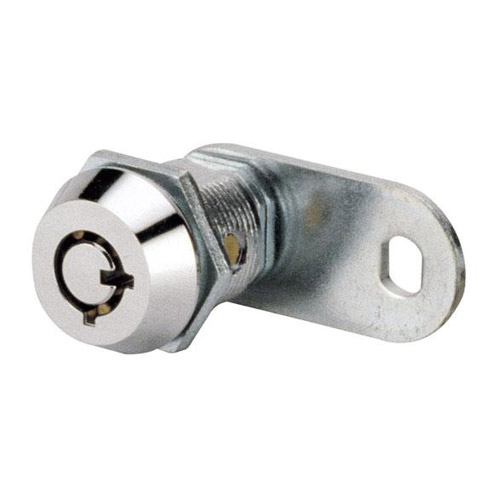

A080 Cam Locks

A080
Product Specification
Name  Material Surfaced process
Basic structure Zinc alloy Bright chrome(CR)
Stopper plate Steel(ST) Zinced(ZI)



       (mm)
Order No.
Type A
Order No.
Type B
A B C D E F G H I J K L M N
A080 - 22- 17 A081 - 22- 17 22 17 6.3 17 34 M19 19 16 19 42 16 58 25 22
          - 22- 23           - 22- 23 22 17 6.3 23 40 M19 19 16 19 42 16 58 25 22
          - 22- 28           - 22- 28 22 17 6.3 28 45 M19 19 16 19 42 16 58 25 22
