B030 Visible Door Removal Hinges

Home / Products / B.Hinge Accessories / Visible Door Removal Hinges
B030
Visible Door Removal Hinges
Product Specification
Name  Material Surfaced process
Basic tructure Zinc alloy Black(BK)



       (mm)
Order No.
Zinc alloy

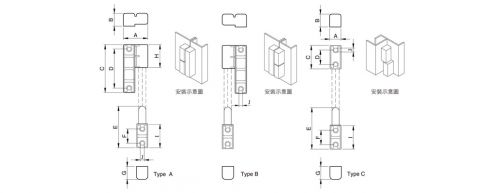

A B C D E F G H I J
Type A B030 - 1 32 17 63 50.8 54.5 19 17 30.5 30.9 M5
Type B          - 2 32 17 63 50.8 54.5 19 17 30.5 30.9 M5
Type C          - 3 14.5 17 30.9 19 54.5 19 17 - 30.9 M5
