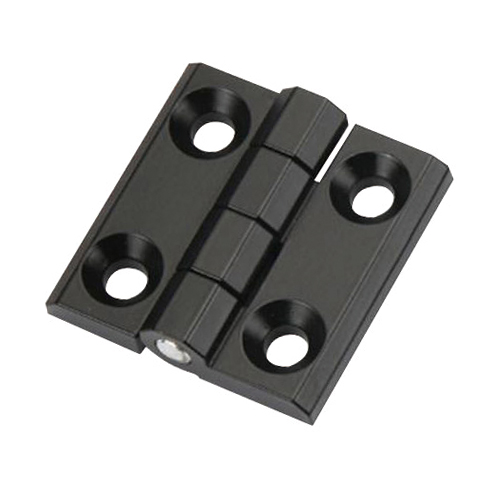

B050 Hinges

B050
Product Specification
Name  Material Surfaced process
Basic structure Zinc alloy Black(BK)
Spindle Stainless steel(SST)



       (mm)
Order No.
Zinc alloy

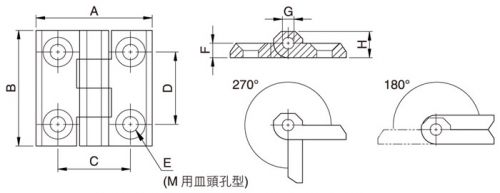

A B C D E F G H Loading
(KG)
B050 - 40- 40 40 40 25 25 M5 5 4 9 20
          -50 - 50 50 50 30 30 M6 6 6 11.5 30
          - 60 - 60 60 60 36 36 M8 8 8 15 40
